Light Weight Aluminum Alloy Wire Grip For Conductor Come Along Clamp Zebra
Directions for use, maintenance and care for all kinds of all conductor grips:
Before each use: Check all parts for distortion or misalignment; proper maintenance and field inspection is necessary. Check grip to be sure of correct type and size for the application. Profile of the jaws and its teeth have to be kept always clean, dry, free of oil and grease to avoid a slipping of the wire.Avoid abrupt loading.Increase tensile force slowly to avoid slipping of the wire or even damage of the teeth. Lubricate only the rivets, never the jaws. Check mechanical condition of entire grip

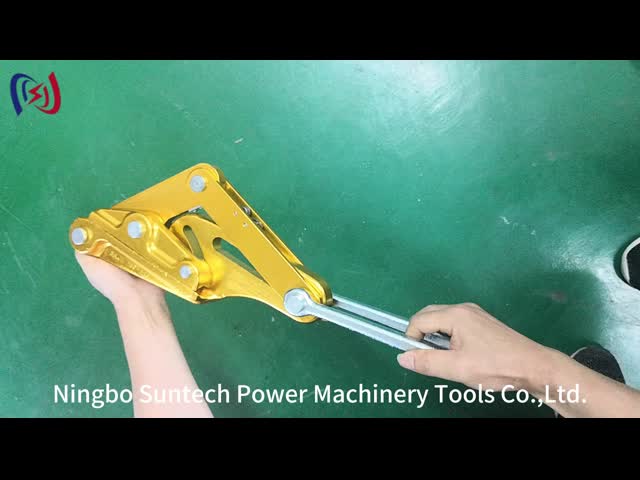

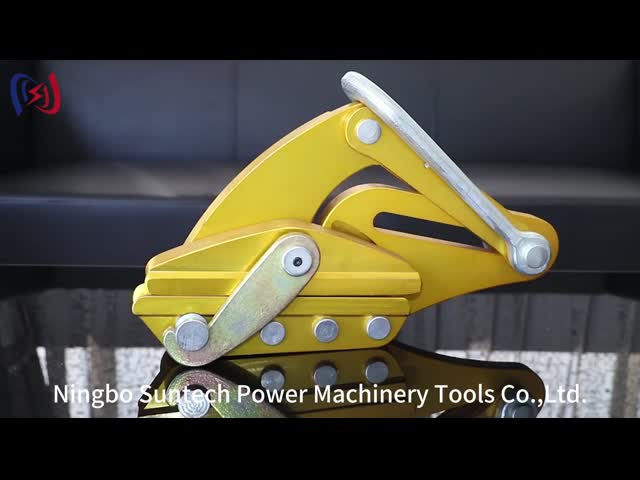

Aluminum Alloy Wire Grip For Conductor Come Along Clamp Zebra
Uses: Come along clamp is apply to sag adjusting and tensioning on overhead line construction.
Features: The conductor clamp is forged of high strength aluminum alloy with small and light unit weight.
| Item No. | Model No. | Rated Load (KN) | Applicable Conductor (ACSR-MM2) | Max Open (MM) | Unit Weight (KG) |
| 0101 | SKL-7 | 7 | 25~70 | 14 | 1.0 |
| 0102 | SKL-15 | 15 | 95~120 | 18 | 1.4 |
| 0103 | SKL-25 | 25 | 150~240 | 24 | 3.0 |
| 0104 | SKL-40 | 40 | 300~400 | 32 | 4.0 |
| 0105 | SKL-50 | 50 | 500~630 | 36 | 6.6 |
Warning: When using grip never exceed Working load Limit WLL !

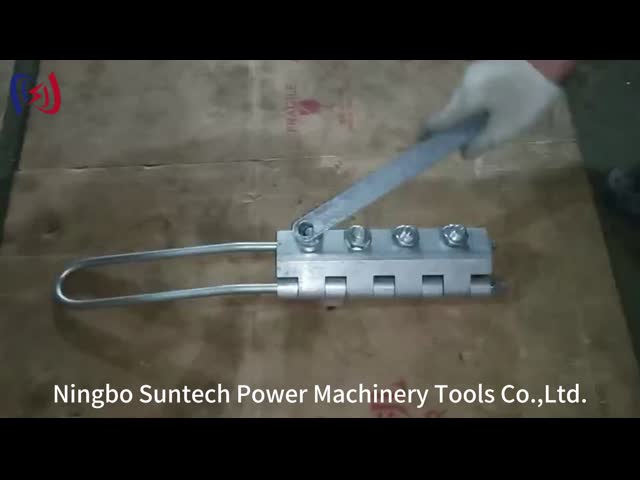

Our Plant also have the other kinds of come along clamps to support the operation, there is bolt type stranded wire gripper, it is to tighten compression nut reiteratively to satisfy the set torque. insulator conductor gripper is adopted serpentine and wavy jaw, positive grip and excellent protective to the insulation.
