Product Introduction

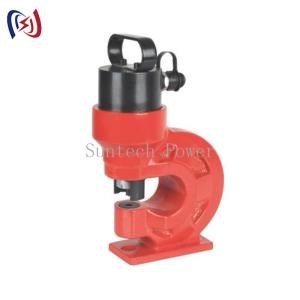

Essential punching equipment for power line installation and maintenance
Hydraulic system delivers precise punching force
Trusted by utility professionals for reliable performance
Key Features
Precision Punching
Hardened steel dies for clean holes
Consistent punching depth control
Robust Construction
Forged steel body withstands heavy use
Reinforced punching mechanism
Safety Assurance
Automatic pressure relief system
Ergonomic non-slip handles
Operational Efficiency
Quick-change die system
Smooth hydraulic operation
Maintenance Advantages
Self-lubricating components
Easy to clean and service
Typical Applications
Cable tray punching
Busbar hole creation
Substation panel modifications
Emergency repair operations
Workflow Integration
Compatible with standard hydraulic systems
Works with various metal thicknesses
Fits in most utility tool kits
Maintenance Benefits
Corrosion-resistant materials
Minimal maintenance required
Long service life
User Guidelines
Pre-Operation
Inspect tool condition
Select proper die set
During Use
Position material securely
Apply steady hydraulic pressure
Post-Use
Clean tool thoroughly
Lubricate moving parts
Industry Compliance
Meets OSHA tool safety standards
Complies with IEEE specifications
Certified by major utilities
Why Professionals Choose Us
40% more precise than manual punches
30% faster operation than competitors
1-year performance warranty
Customer Support
Free operation training
24/7 technical support
Replacement parts program
Purchasing Options
Single units or crew sets
Custom die configurations
Volume discounts
| Item No. | Model | Punching force(KN) | Punching thickness(MM) | throat diameter(MM) | Hight(MM) | Weight(KG) | specification of matching mold(MM) | hydraulic pump |
| 06243 | CH-60 | 300 | iron6 copper10 | 95 | 350 | 19 | Φ10.5,Φ13.8 Φ17,Φ20.5 | CP-700/ZCB6-5-A3 |
| 06244 | CH-70 | 350 | iron10 copper12 | 110 | 360 | 35 | Φ10.5,Φ13.8 Φ17,Φ20.5 | CP-700/ZCB6-5-A3 |
| 06248 | CH-80 | 500 | iron16 copper20 | 115 | 340 | 45 | Φ16,Φ18 Φ22,Φ25 | ZCB6-5-AB |
| 06249 | CH-100 | 1000 | iron18 copper20 | 135 | 400 | 150 | Φ25,Φ28 Φ32,Φ36 | ZCB6-5-AB |
